In-house package from PICOTE

Now even easier in-house rehabilitation thanks to the combination of the compact BRAWO® Pico light-curing system with the matching PICOTE in-house package! This makes the rehabilitation process even more flexible!

All components are compatible with each other, can be easily transported and enable the application under extremely cramped conditions – optimal for the in-house application area.

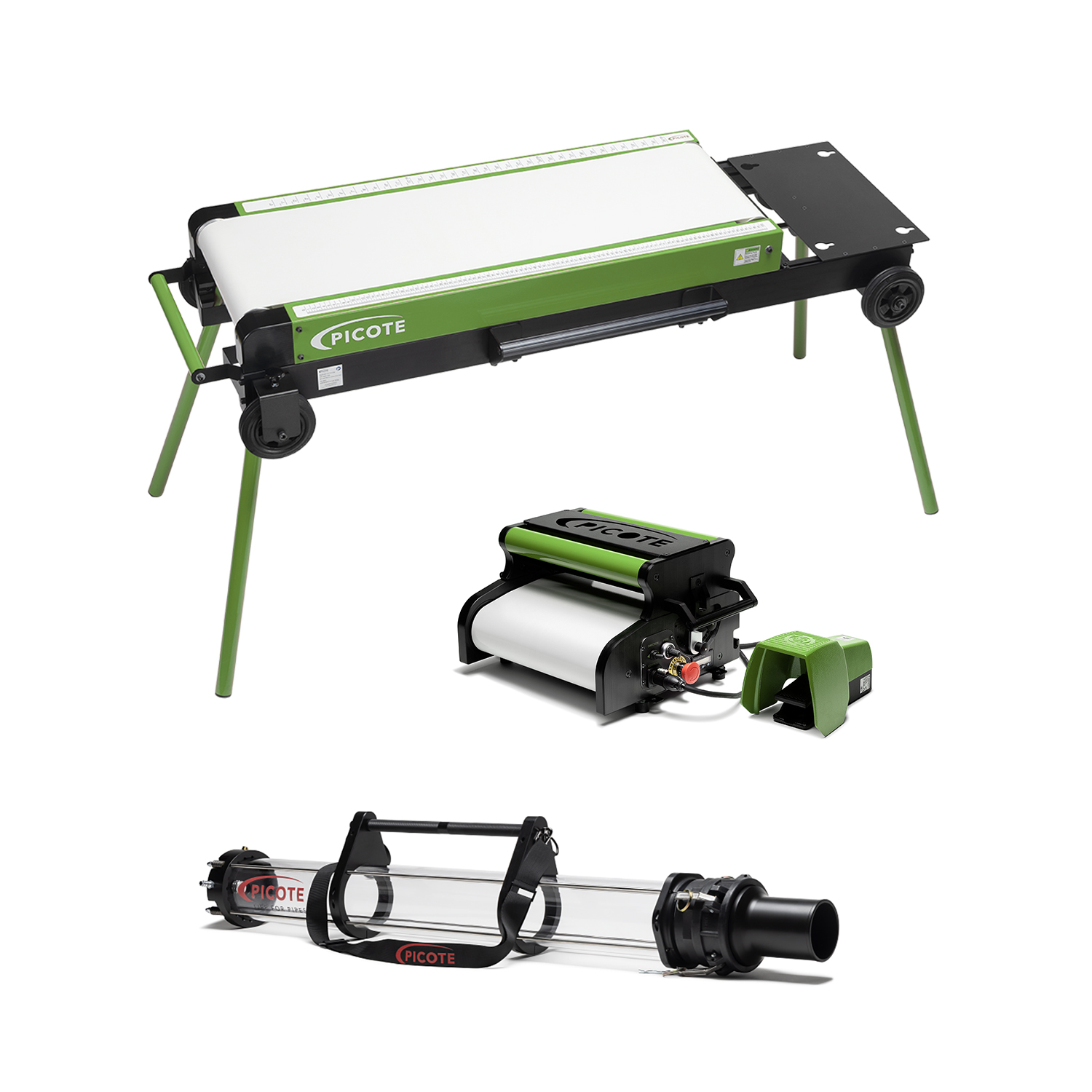

In-house package from PICOTE

Midi Roller and Impregnation Table

  • For use in the smallest spaces
  • Compact and lightweight
  • In a set, can also be used individually
  • Battery-powered
  • Optionally, liner holders are available in different liner sizes as a practical aid when filling the resin.

PICOTE Cannon

  • Compact and lightweight design
  • Lightweight and easy to transport
  • Used on construction sites where the inversion drum cannot reach
  • Pressure control from 0–2 bar via compressed air control valve (available separately)
  • Optionally, a quick-release fastener and inversion heads in various sizes are available.
Technical data Midi Roller
Weight:approx. 18 kg
Dimensions (L x W x H):486 x 360 x 265 mm
Diameters:DN 50 – 225
Roller spacing:4 – 14 mm
Speed:3 – 9 m/min
Operating time (battery):approx. 10 h
Power supply:battery and power connection 230V
Techn. Daten Imprägniertisch
Weight:ca. 36 kg
Dimensions (folded, L x W x H):1550 x 287 x 632 mm
Dimensions (incl. midi roller, L x W x H):1550 x 970 x 632 mm
Belt length:1,2 m
Technical data PICOTE Cannon
Weight:approx. 6,2 kg
Total length:117,5 cm
Liner capacity DN 50:15 m
Liner capacity DN 75:10 m
Liner capacity DN 100:7 m
